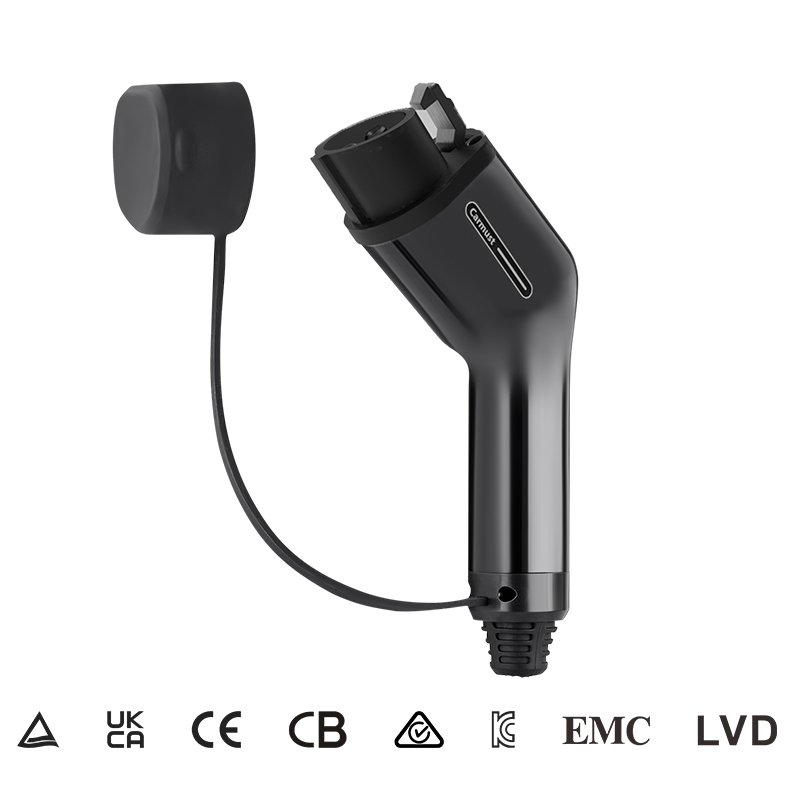

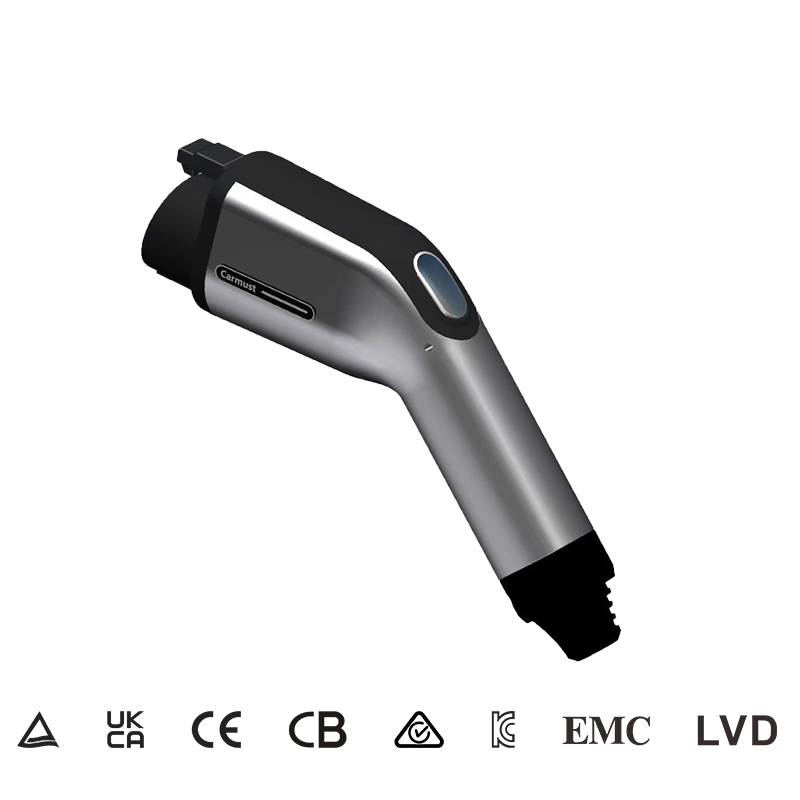

EV discharge equipment FK814

Design standard: EN62196;IEC62196;SAE J1772

Rated operating voltage: 220-240V AC

Charging current rating : 16A

Operating frequency: 50Hz/60Hz

CP signal: 1KHz士30Hz，士12V

Standby power: <2W

Operating temperature/humidity: -35°C-50°C/5%-95%

Storage temperature: -40°C-80°C

Insulation resistance: >10MQ

Charging gun protection level: IP65

Safety protection: Product overtemperature protection relay fault detection Overcurrent protection Overvoltage protection undervoltage protection Leakage protection Plug temperature protection ungrounded protection short circuit protection equipment/connection abnormal protection car charging system abnormal protection

Rolling strength: ≤11000N

Impact voltage: ≤2.5KV

Service life: 10000 times

Flame retardant grade: UL94-V0

Working altitude: ≤2000M

Gun body size (mm): L245xW146xH56

Line length: as needed
