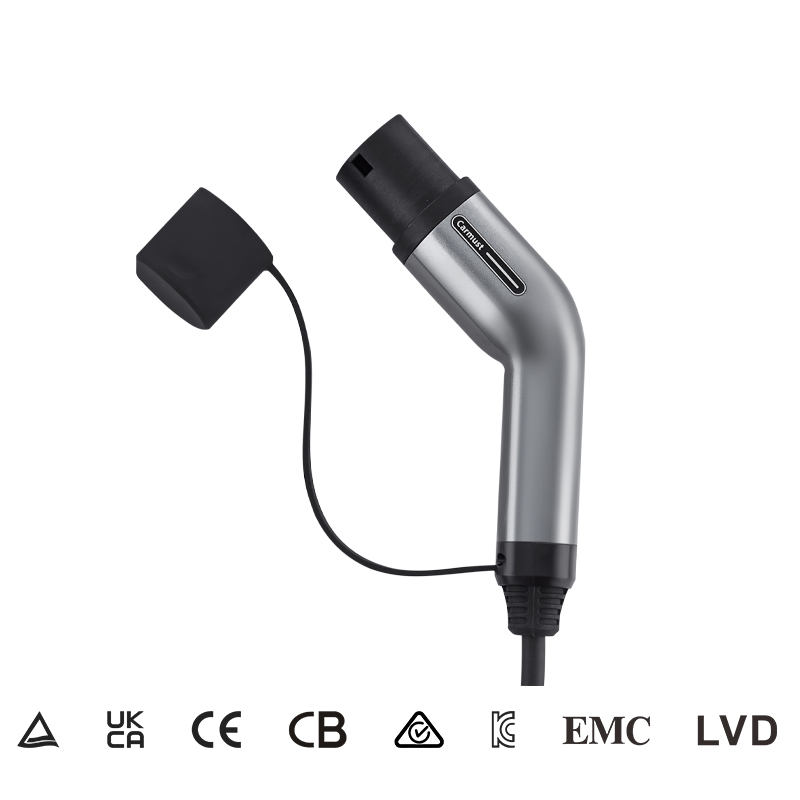

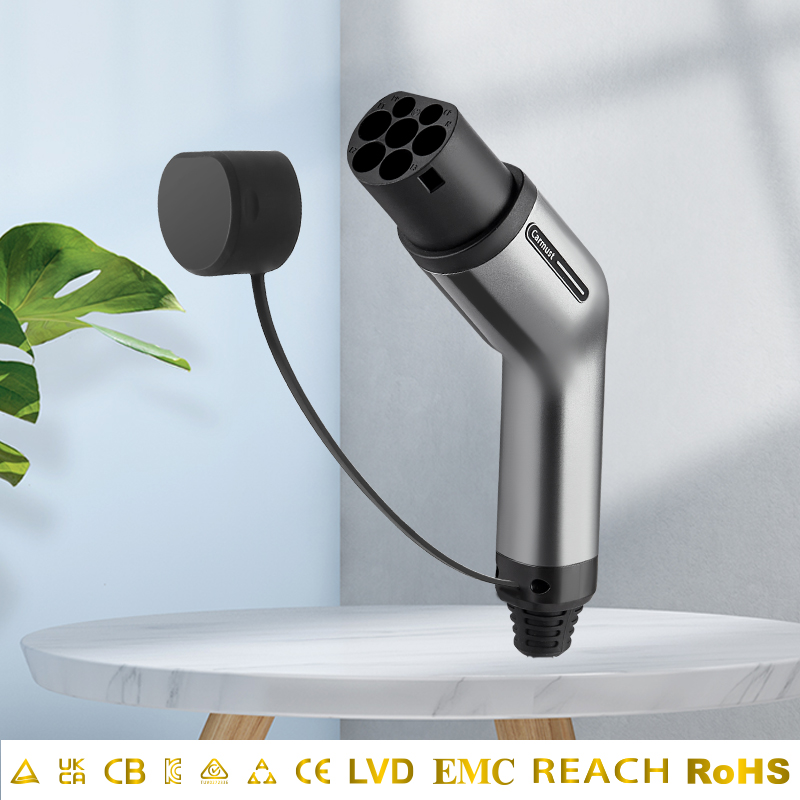

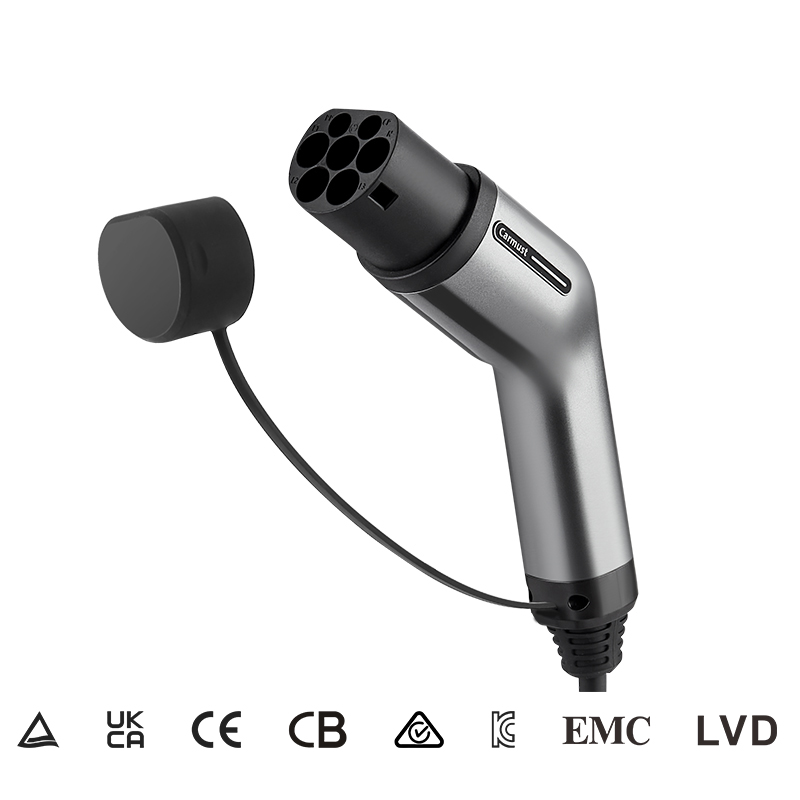

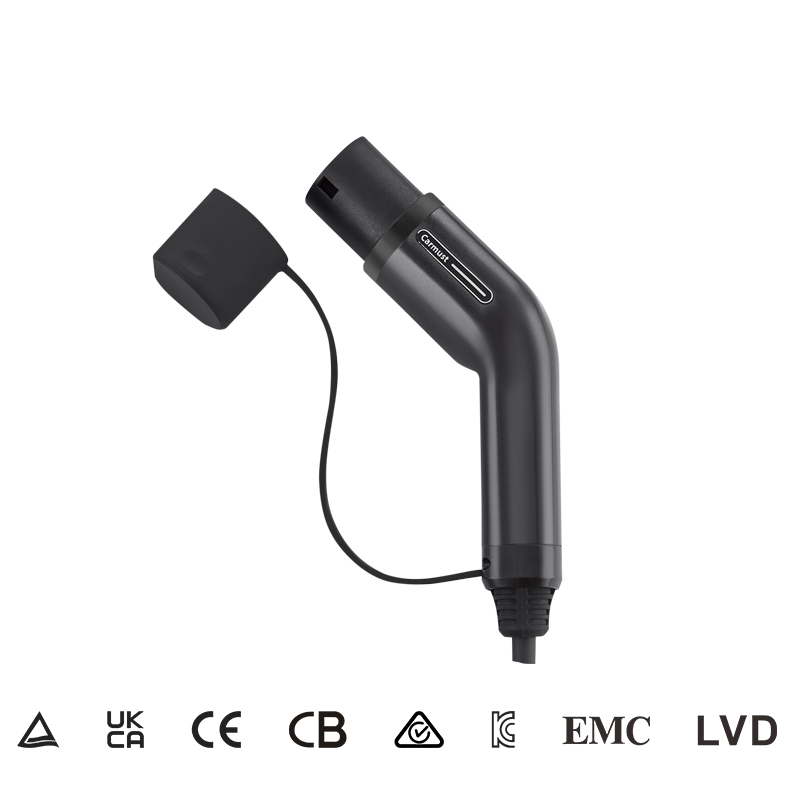

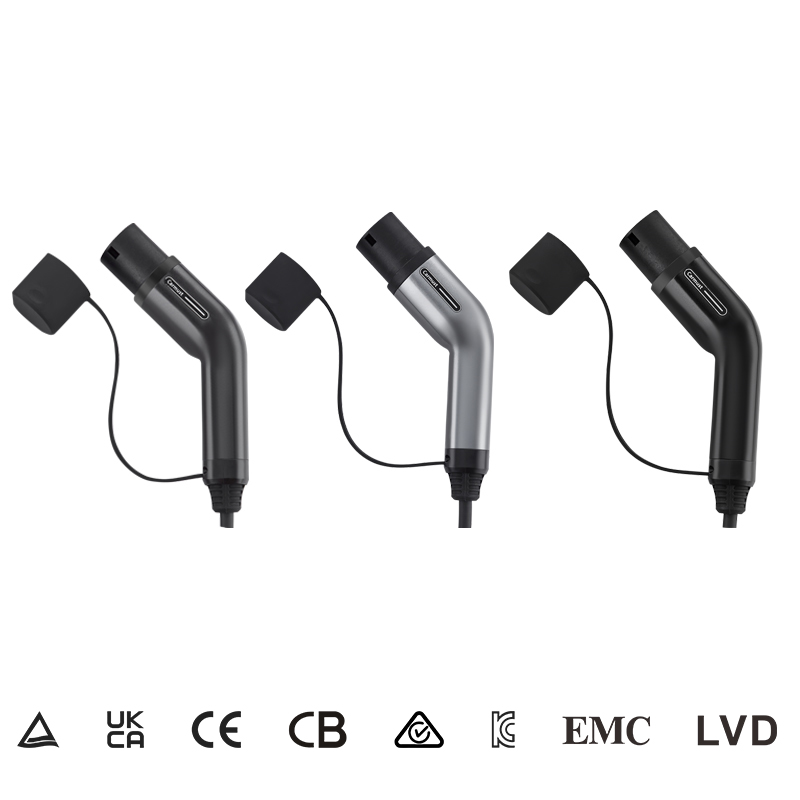

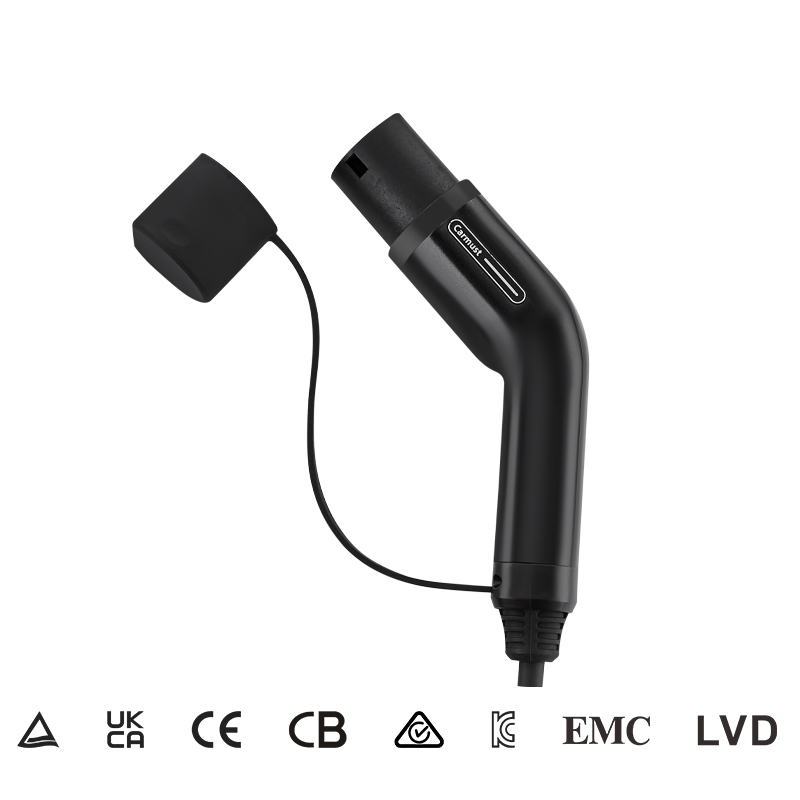

EV charging plug Kxx

Design standard: EN62196;IEC62196

Rated operating voltage: AC 480V (three-phase) AC 250V(sigle-phase)

Charging current rating (adjustable) : 10A/13A/16A32A/60A/63A/70A

Operating frequency: 50Hz/60Hz

Rated remaining working current: 30mA+DC6mA

CP signal: 1KHz士30Hz，士12V

Standby power: <2W

Operating temperature/humidity: -35°C-50°C/5%-95%

Storage temperature: -40°C-80°C

Insulation resistance: >10MQ

Charging gun protection level: IP54

Safety protection: Product overtemperature protection relay fault detection Overcurrent protection Overvoltage protection undervoltage protection Leakage protection Plug temperature protection ungrounded protection short circuit protection equipment/connection abnormal protection car charging system abnormal protection

Rolling strength: ≤11000N

Impact voltage: ≤2.5KV

Service life: 10000 times

Flame retardant grade: UL94-V0

Working altitude: ≤2000M

Gun body size (mm): L297.5xW129xH28.5

Cable specifications: TPU material, vehicle level EV special line

Line length: as needed
