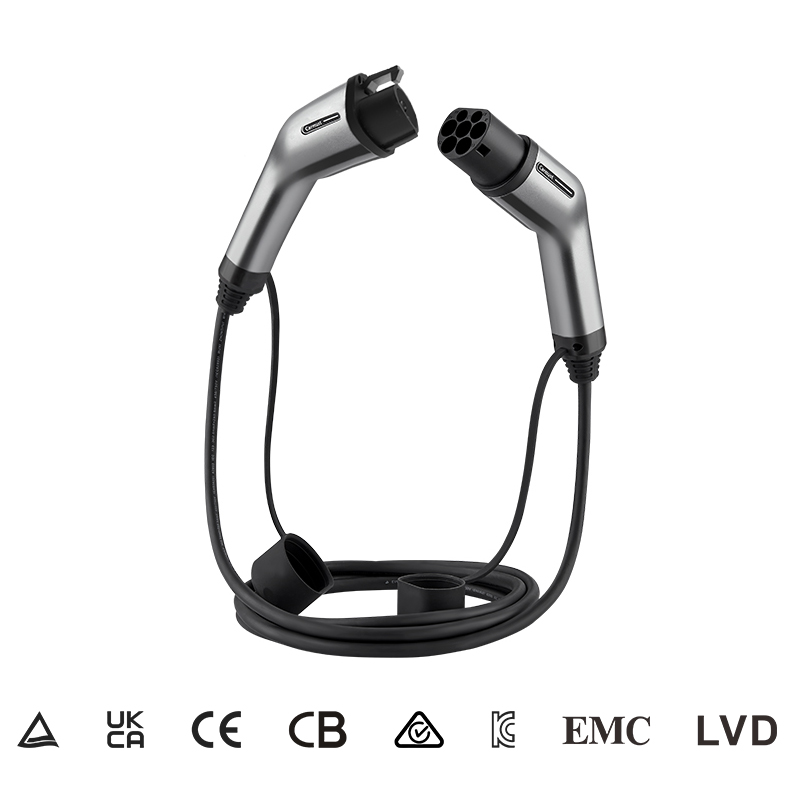

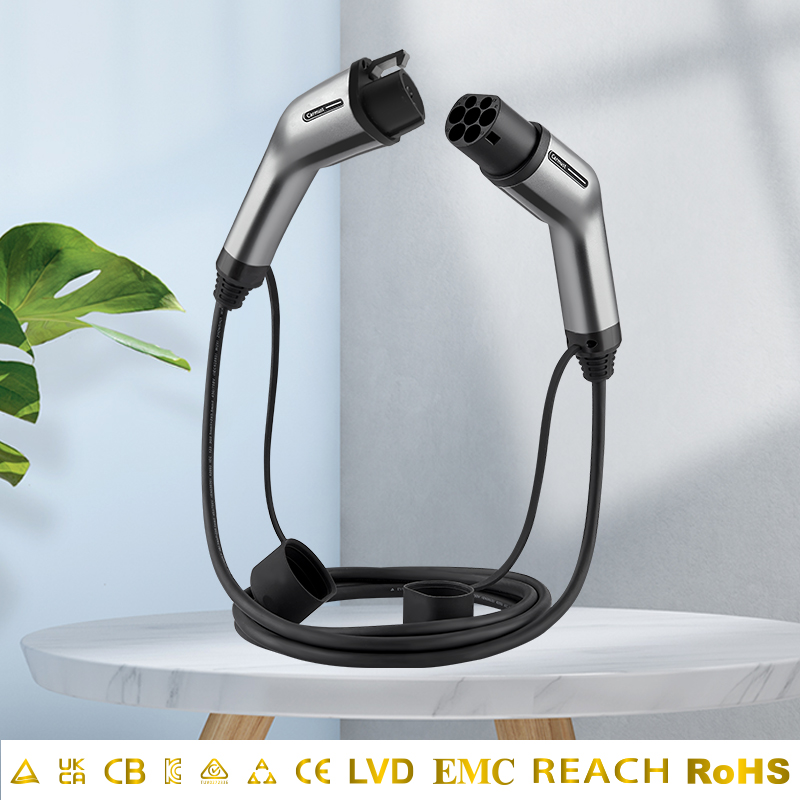

EV dual-head charging equipment SKxxx

Design standard: EN62196; IEC62196; IEC61851; EN61851

Rated operating voltage: AC 480V (three-phase) AC 250V(sigle-phase)

Charging current rating (adjustable) : 16 13 a/a / 20 to 30 32 a/a/a/a / 63 a / 70 a

Operating frequency: 50Hz/60Hz

Rated remaining working current: 30mA+DC6mA

CP Signal: 1KHz 士30Hz, 士12V

Standby Power: <2W

Operating temperature/humidity: -35 ° C-50 ° C/5% -95%

Storage temperature: -40 ° C-80 ° C

Insulation resistance: >10MQ

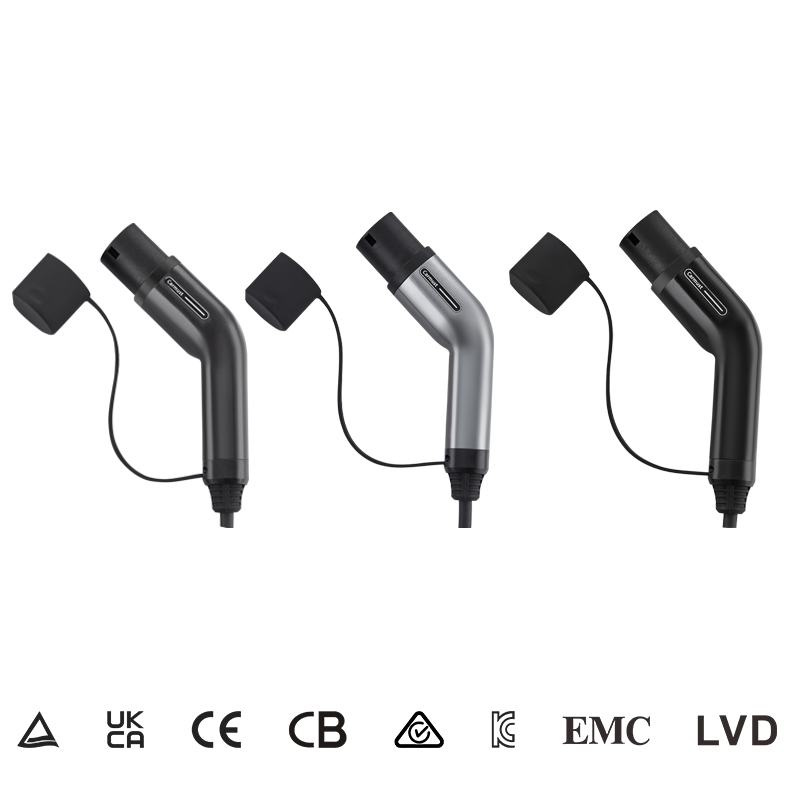

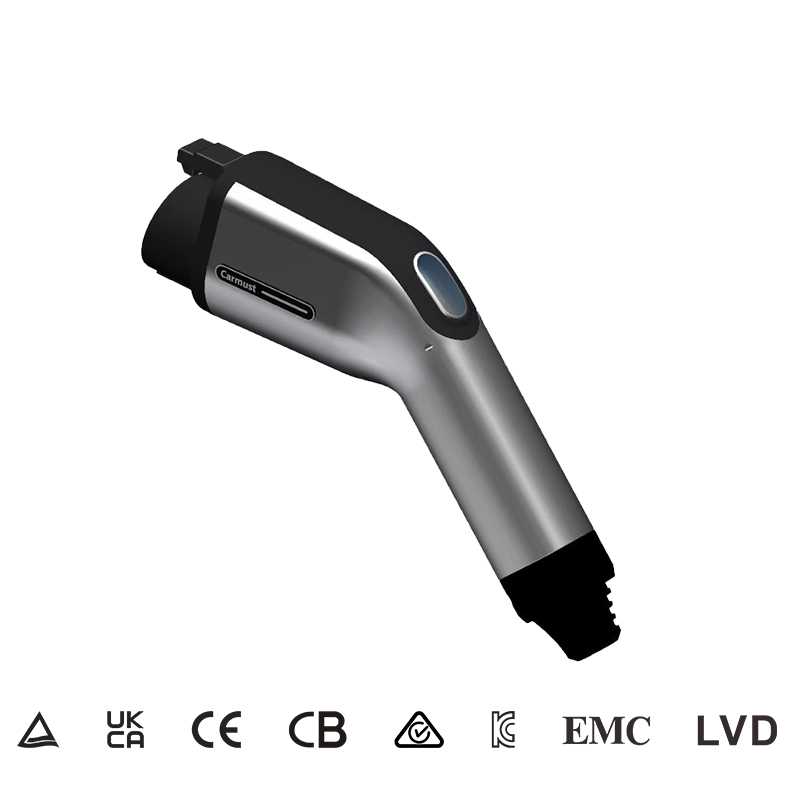

Charging gun protection level: IP65 IP54

Safety protection: Product overtemperature protection relay fault detection Overcurrent protection Overvoltage protection undervoltage protection Leakage protection Plug temperature protection ungrounded protection short circuit protection equipment/connection abnormal protection car charging system abnormal protection

Rolling strength: ≤11000N

Impact voltage: ≤2.5KV

Service life: 10000 times

Flame retardant grade: UL94-V0

Working altitude: ≤2000M

Wire specification: TPU material, vehicle level EV special cable

Line length: as needed
