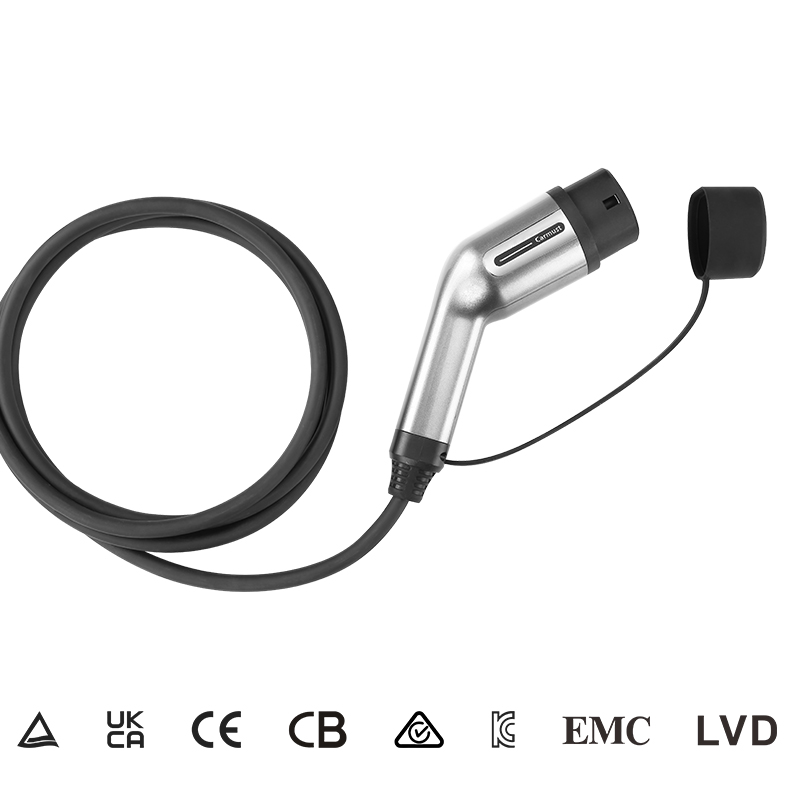

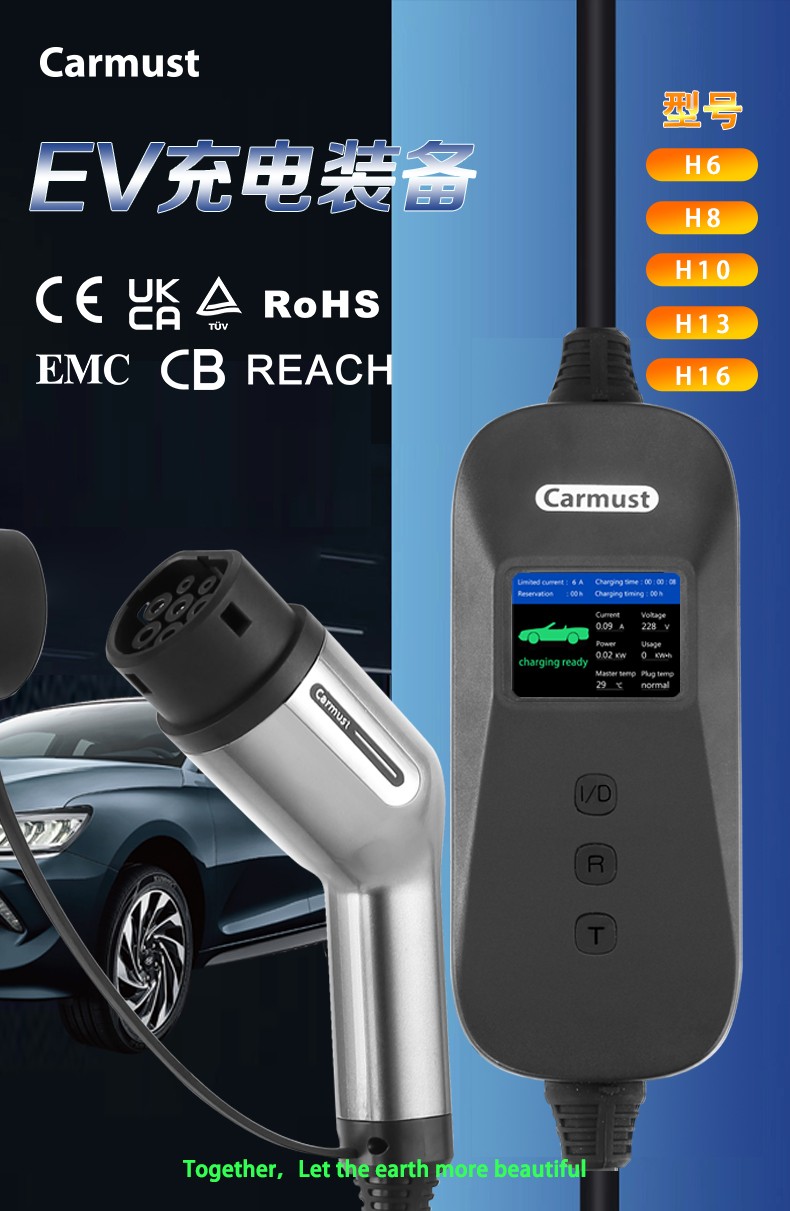

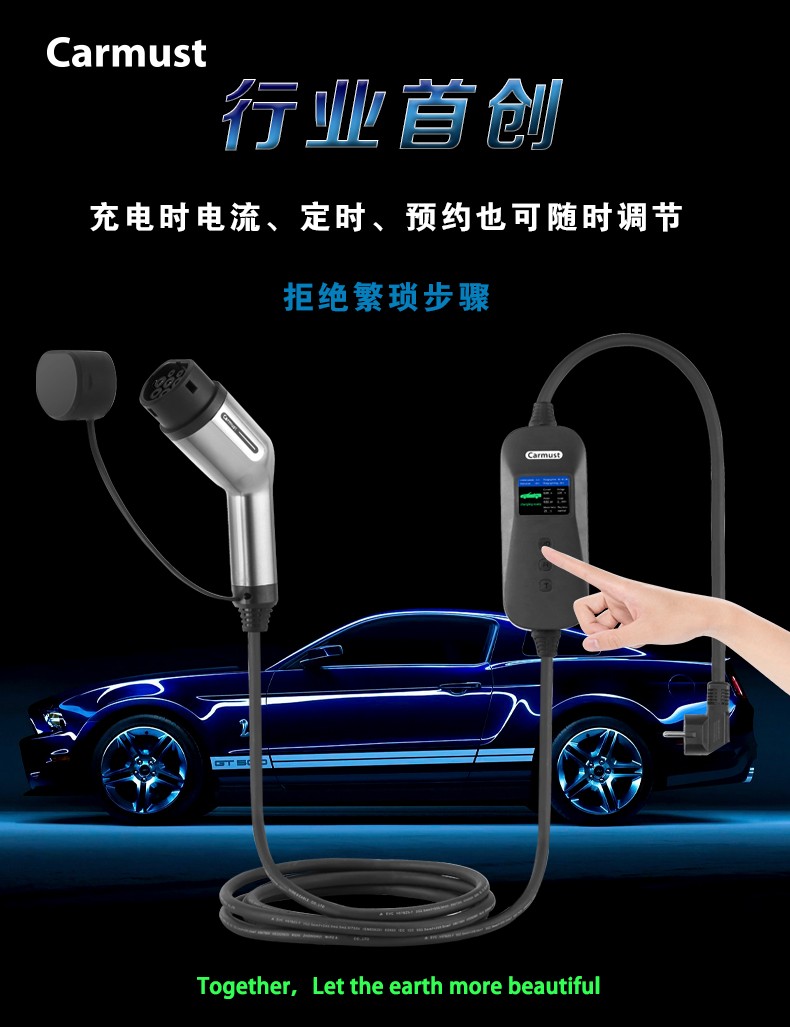

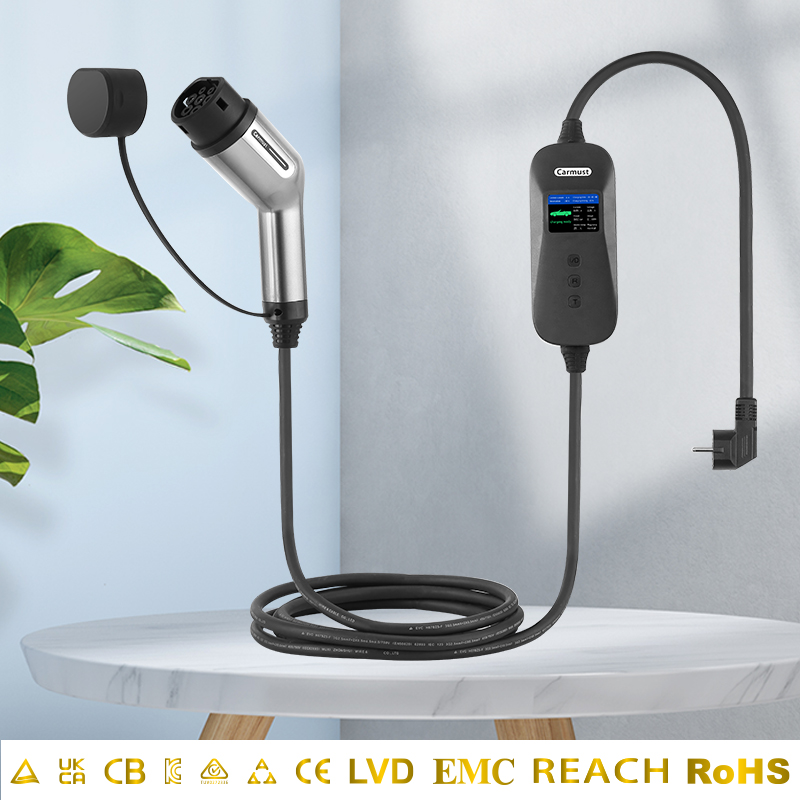

EV charging equipment H16

Design standard: EN62196; IEC62196; IEC61851; EN61851

Charging mode: Mode 2

Power system: TN-C， TN-S

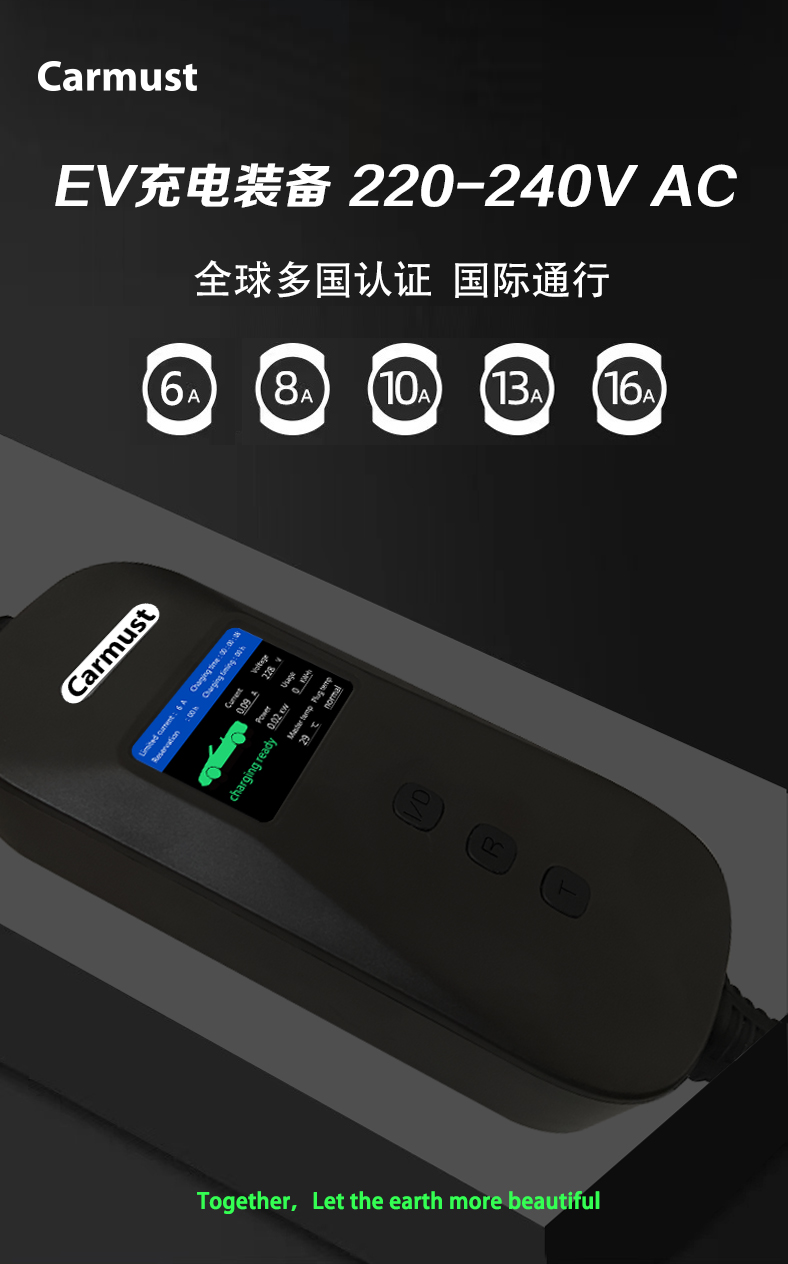

Rated input voltage: 220V-240VAC

Rated output voltage: 220V-240VAC

Rated charging current (adjustable):  8A/10A/13A/16A

Operating frequency: 50Hz/60Hz

Rated remaining working current: 30mA + DC6mA

CP Signal: 1KHz 士30Hz, 士12V

Standby Power: <2W

Operating temperature/humidity: -35 ° C-50 ° C/5% -95%

Storage temperature: -40 ° C-80 ° C

Insulation resistance: >10MQ

Control box protection level: IP68

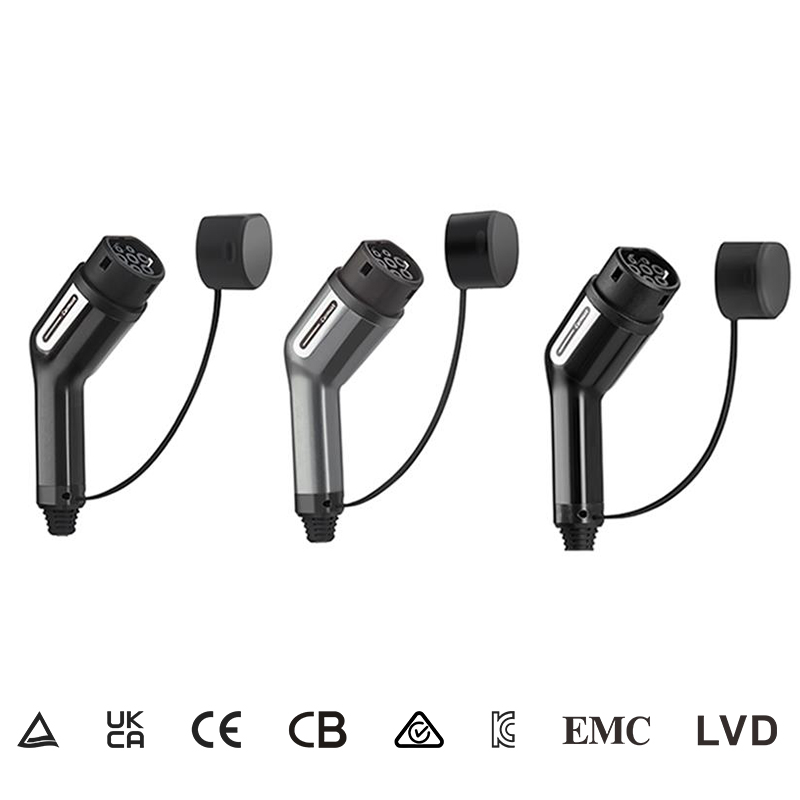

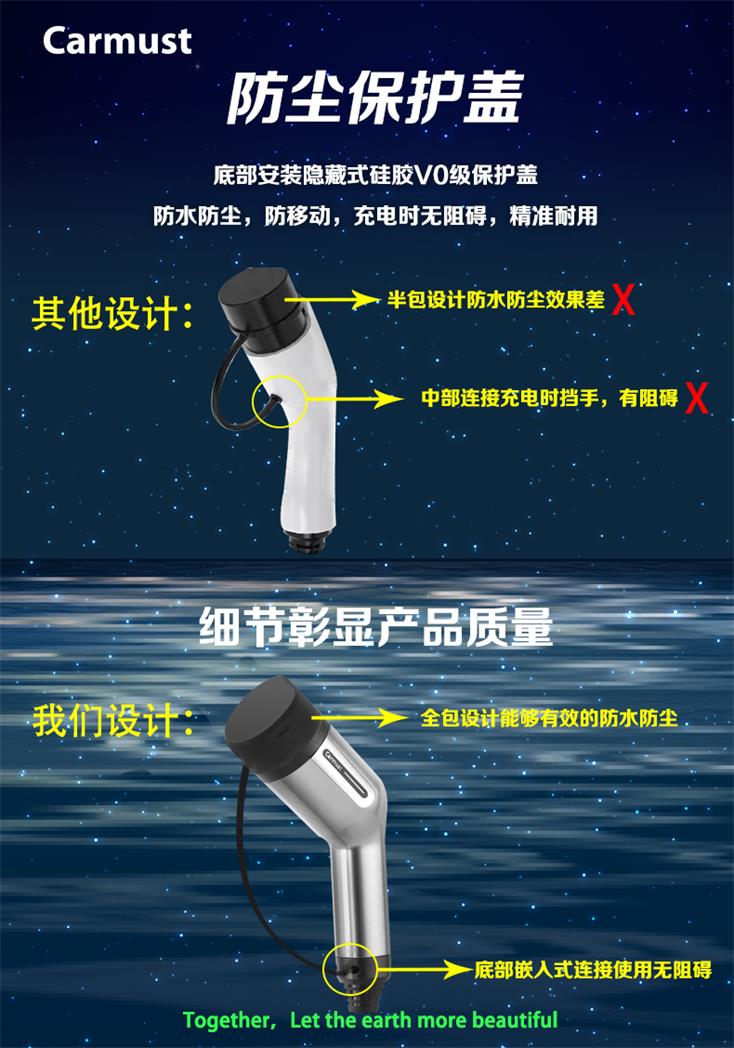

Protection level of charging gun: IP65

Security protection: product overtemperature protection, relay fault detection, over-current protection, over-voltage protection, under-voltage protection, leakage protection, plug temperature protection, ungrounded protection, short circuit protection, equipment/connection abnormal protection, charging system abnormal protection,

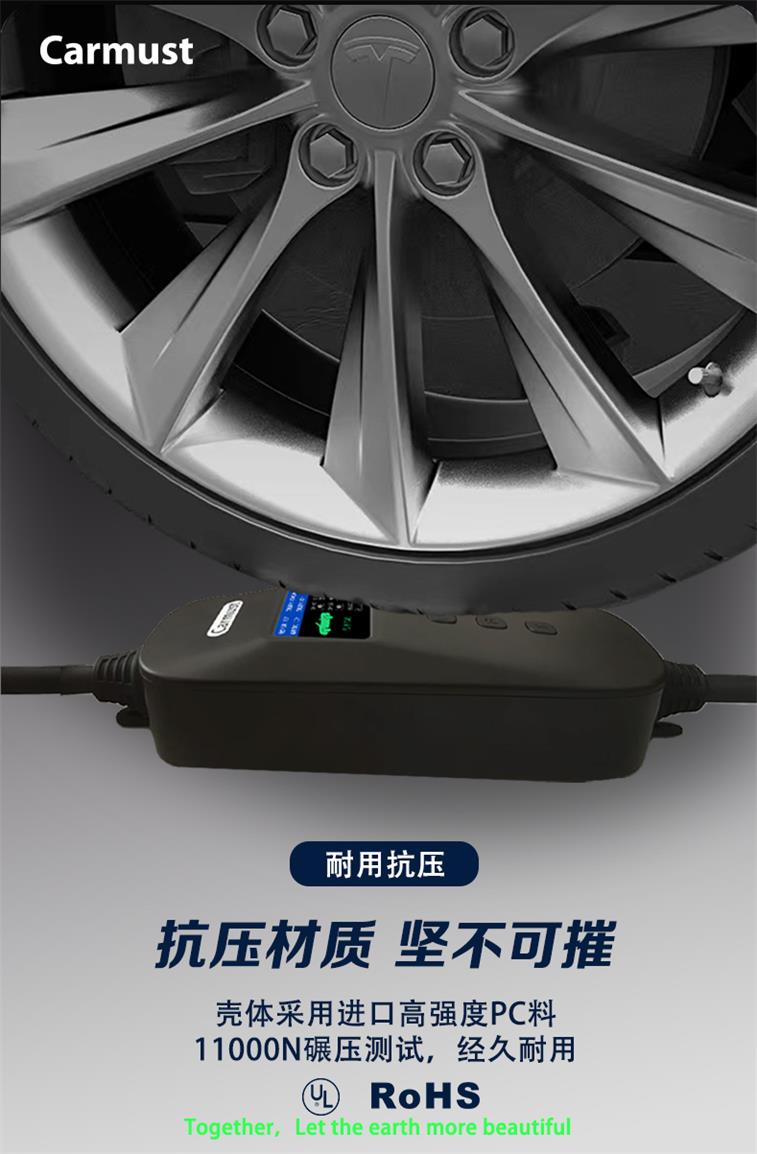

Crush strength: ≤11000N

lmpact withstand voltage: ≤2.5 kv

Service life: 10000 times

Flame retardant grade: UL94-V0

Working altitude: ≤2000M

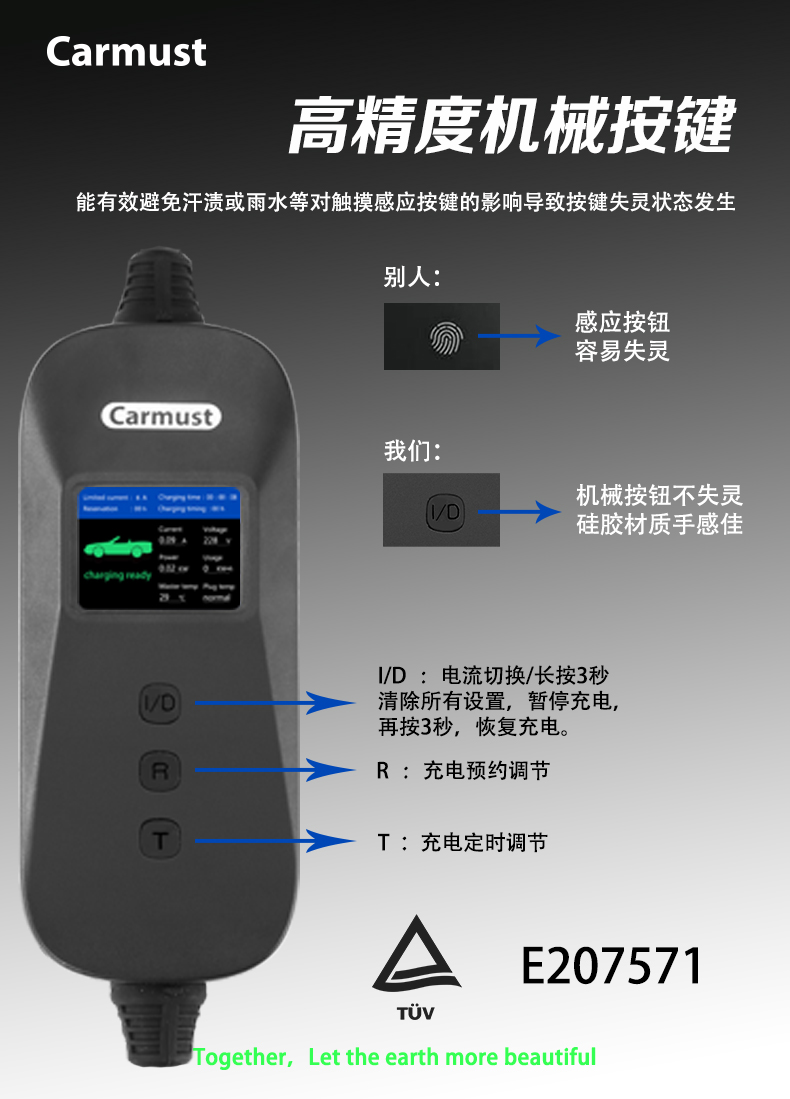

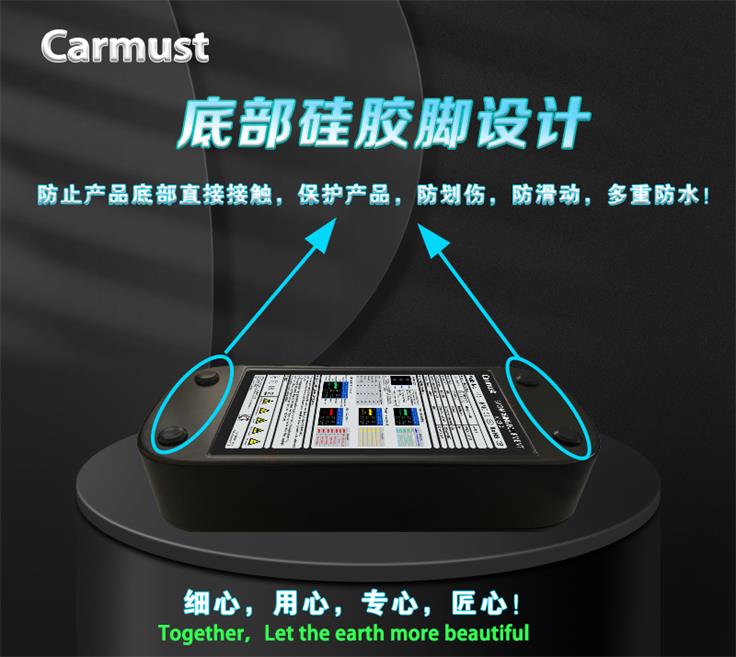

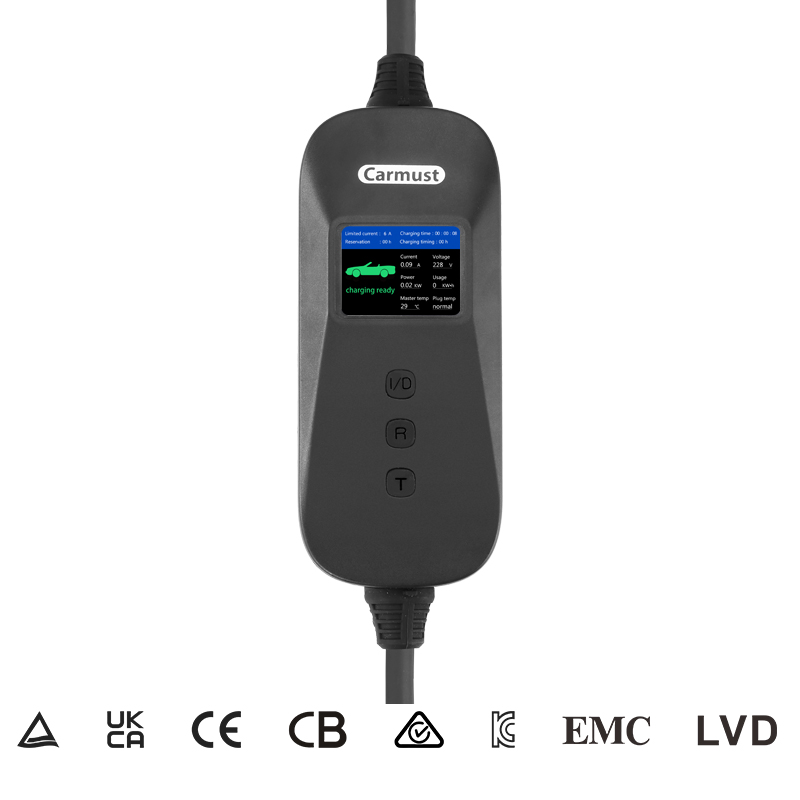

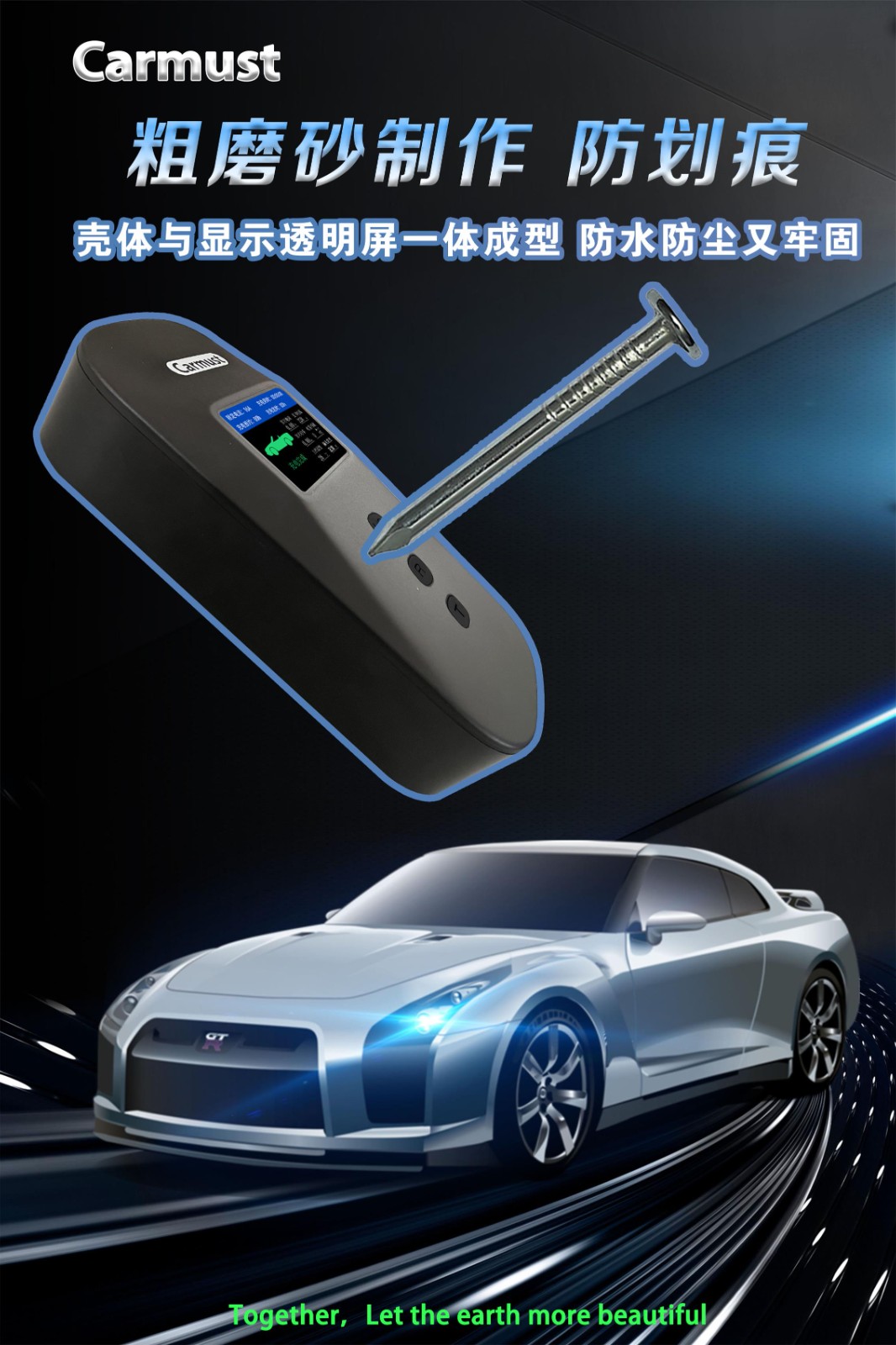

Control box size (mm) : L200xw80xh50

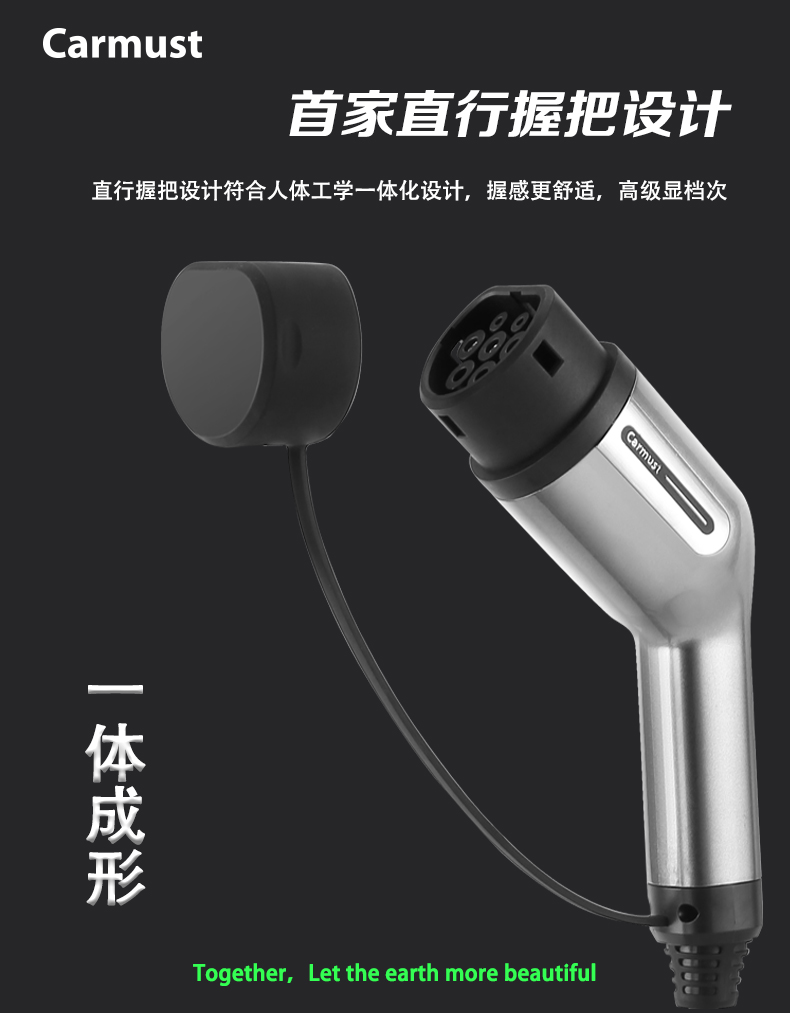

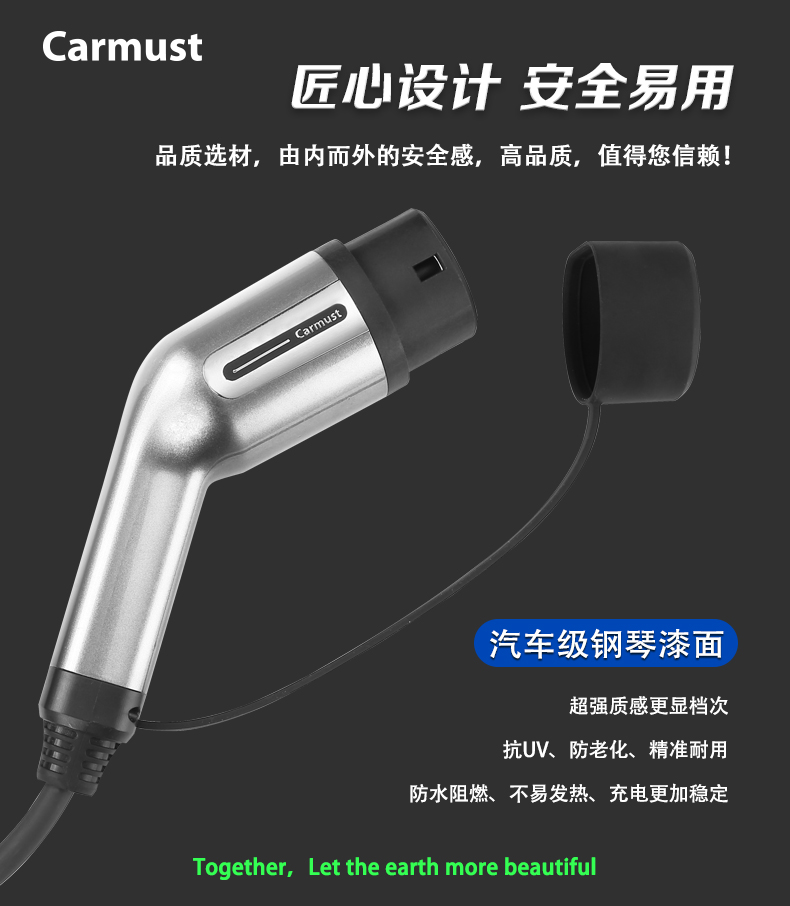

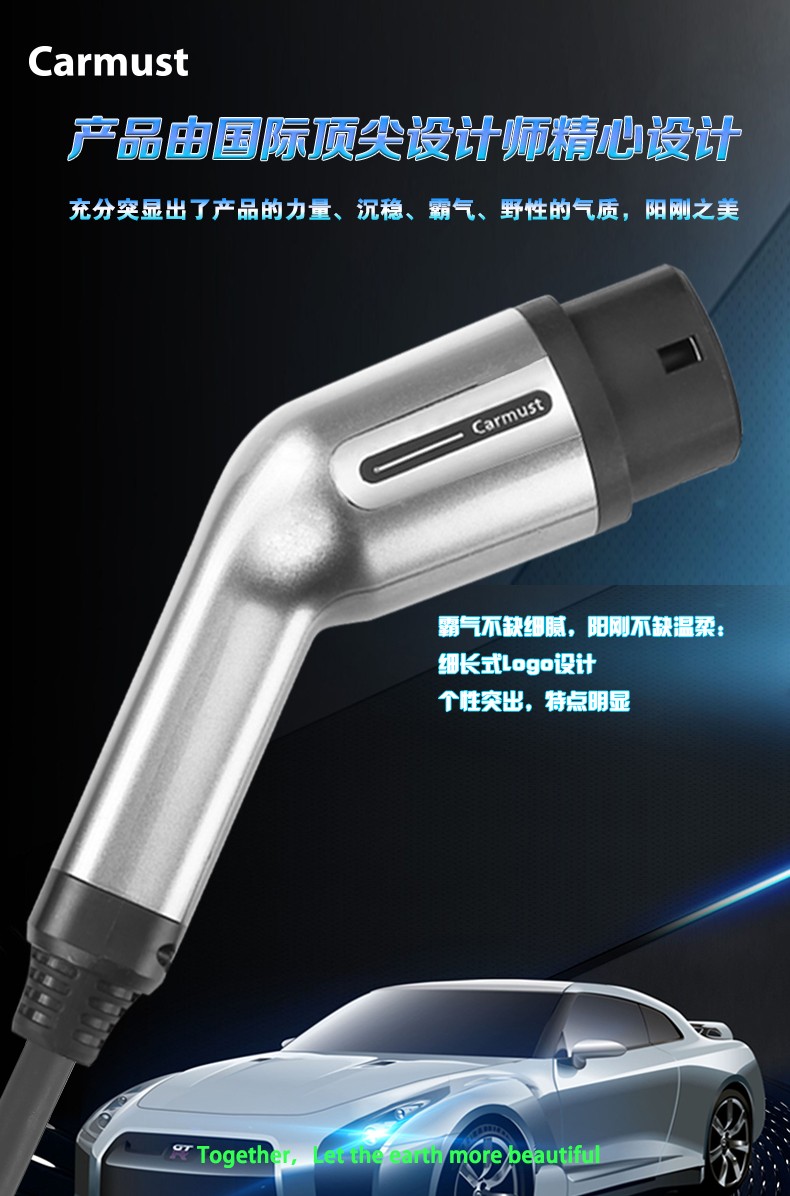

Gun body size (mm) : L240xw141.5XH71

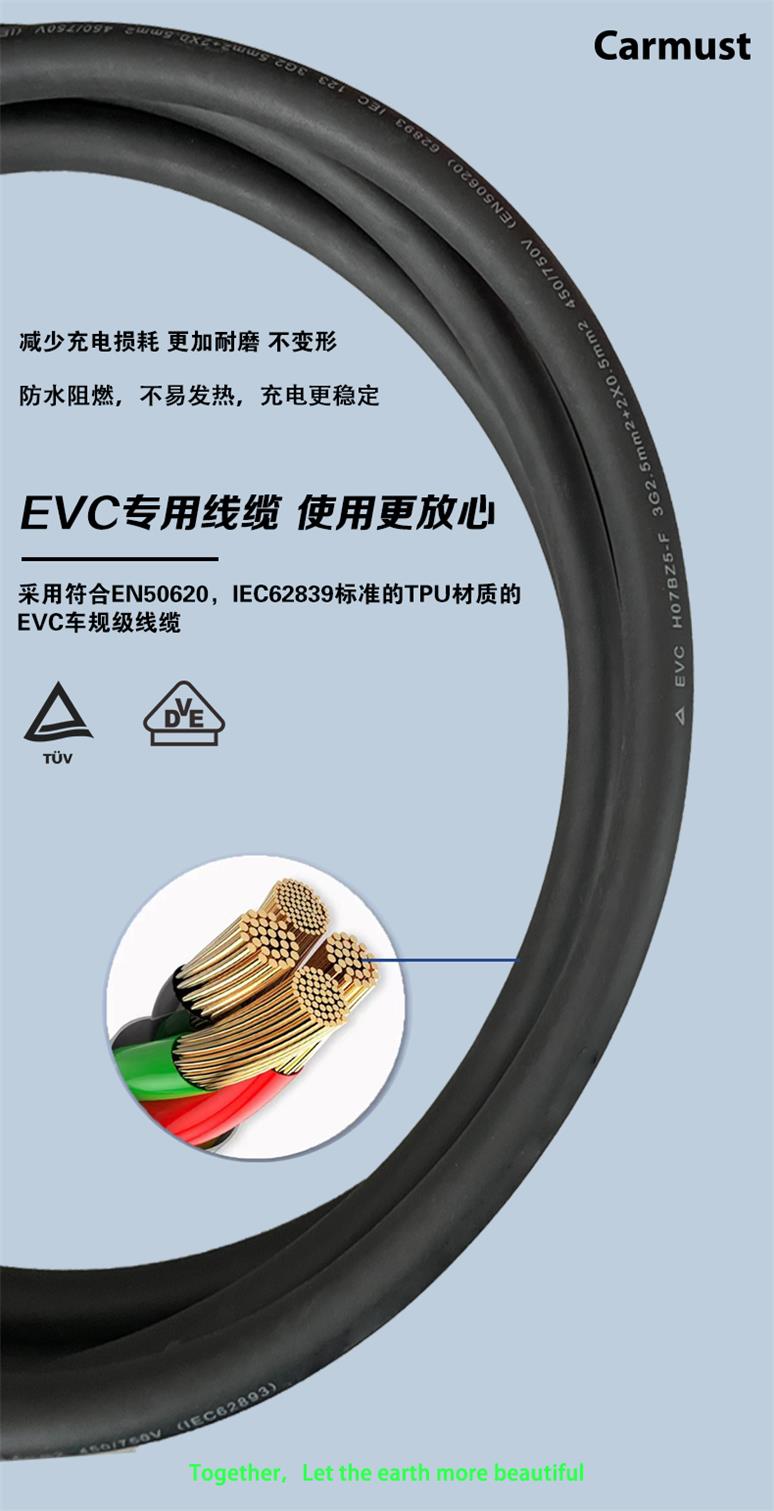

Line length: On Demand
